We are the leading and professional manufacturer of paper cushion material machinery in China such as Flame Resistant Filter Paper Making Machine,honeycomb paper making machine,cushion paper forming machine,fanfold paper folding machine and paper bubble machine.
Application

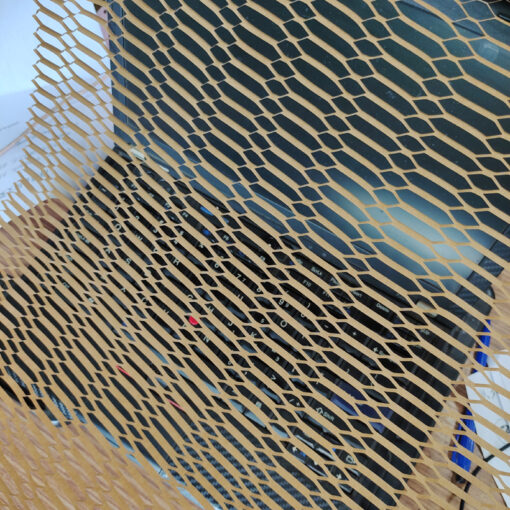

This honeycomb filter paper making machine is our newest design accord to customer requirement, the main material of paper is the flame resistant paper or flame retardant paper,after die cutting and stitching online,the finished paper in roll can be used as filter material.
Also our normal honeycomb paper forming machine can make simple honeycomb shape kraft paper without the pulling cutting paper and directly rewind the finished paper to air shaft.So this mean the same machine can do both job,one function is making the honeycomb type paper,mesh paper for packing field using,another function is making the flame resistant paper to be used as filter material in workshop.But when make the filter paper,the machine we will design some longer between the die cutting module and the rewinding device,then customer can add some stitching or sewing machine in this making process.
Machine features
- This machine is suitable for die cutting honeycomb paper,wrapping paper, shock-absorbing paper, kraft paper,fish net paper from 70g to 100g.
- The unwinding,cutting and rewinding in one process.
- Main motor equipped with Inverter for speed regulation.
- Automatic ultrasonic web guide controller for unwinding.
- Tension controlled by magnetic powder brake and clutch.
- Automatic meter counting device,automatically stop after it reaches the length you set.
- Pneumatic cylinder to control the cutting mould up and down.
- Roll to sheet cutting is optional.(can match our paper wrapper)
Technical parameters
| Machine model | EM-PH800 |
| Max material width | 700mm |
| Machine working speed | 0-100m/min adjustable |
| Unwinding diameter | 0-1200mm |
| Rewinding diameter | 0-300mm(600mm for flame retardant paper) |
| Unwinding roll weight | Max. 1 Ton |
| Unwinding shaft | 3”inflatable air shaft |
| Rewinding shaft | 1”/1.5”/2”/3” air shaft (choose either one,usually is 1.5”) |
| Machine size | 3200*1350*1300mm(LxWxH) |
| Machine weight | 1800KG |
| Power supply | 380V 3 Phase or as customer requirement |
About flame resistant kraft paper
Flame resistant kraft paper is a type of paper that is designed to withstand high temperatures and resist burning. This paper is commonly used in various applications where fire safety is a concern, such as in the construction industry, packaging, and electrical insulation.
Kraft paper is a type of paper that is made from wood pulp. It is known for its strength and durability, as well as its ability to resist tearing and punctures. This makes it an ideal material for packaging and shipping products.
However, regular kraft paper is not flame resistant, which means that it can easily catch fire if exposed to high temperatures or an open flame. This is a major concern in many industries where fire safety is a top priority.
To address this issue, flame resistant kraft paper has been developed. This paper is treated with special chemicals or coatings that make it resistant to fire. These chemicals or coatings can prevent the paper from igniting or slow down the spread of flames if the paper does catch fire.
Flame resistant kraft paper is commonly used in the construction industry as a protective barrier in walls and ceilings. It can also be used as an underlayment for roofing materials to prevent fires from spreading. In addition, it is used in the packaging of hazardous materials, such as chemicals and batteries, to ensure that they are transported safely.
Another important application of flame resistant kraft paper is in electrical insulation. This paper is used to wrap electrical wires and cables to prevent them from catching fire or spreading flames in case of a short circuit. It is also used as a lining material in transformers and other electrical equipment.
In conclusion, flame resistant kraft paper is an important material that is widely used in various industries to ensure fire safety. Its ability to withstand high temperatures and resist burning makes it an ideal choice for applications where fire hazards are a concern. As technology continues to advance, we can expect to see further advancements in flame resistant materials that will continue to improve safety in our daily lives.
About kraft filter paper forming machine
Kraft filter paper is a type of high-quality paper that is commonly used in industries such as food and beverage, pharmaceuticals, and automotive. It is a porous material that allows liquids to pass through while retaining solid particles. Kraft filter paper is made from a mixture of wood pulp and chemicals that give it its unique properties.
Kraft filter paper forming machines are the latest addition to the paper manufacturing industry. These machines are designed to produce high-quality kraft filter paper, used in a variety of industries like automotive, pharmaceutical, and food processing. The demand for this type of paper is increasing globally, which has led to the development of advanced kraft filter paper forming machines.
Kraft filter paper is a type of paper that is made from wood pulp. It is known for its exceptional strength, durability, and ability to retain impurities. The paper is commonly used in filtration systems, where it is used to remove impurities from liquids and gases. Kraft filter paper is also used in the production of tea bags, coffee filters, and other filtration applications.
The kraft filter paper forming machine is a complex piece of machinery that uses advanced technology to produce high-quality kraft filter paper. The machine is designed to take raw materials like wood pulp and chemicals and convert them into a finished product. The process involves a series of steps, including pulping, refining, and forming, which are carried out in a controlled environment.
One of the main advantages of using a kraft filter paper forming machine is the high level of automation it provides. The machine is designed to perform all the necessary steps in the production process, from pulping to forming, without the need for manual intervention. This not only improves the quality of the finished product but also increases production efficiency.
Another advantage of using a kraft filter paper forming machine is the flexibility it provides. The machine can be programmed to produce kraft filter paper in different sizes and thicknesses, depending on the requirements of the end-user. This makes it easy to produce paper for a wide range of applications.
In conclusion, the kraft filter paper forming machine is a critical piece of machinery in the paper manufacturing industry. Its ability to produce high-quality kraft filter paper with a high level of automation and flexibility makes it a valuable asset to any paper manufacturing company. With the increasing demand for kraft filter paper, the machine is expected to play a significant role in meeting the growing needs of various industries.
